Clamping plates and large parts
with Makro•Grip® Ultra

simple. gripping. bigger.

Workholding in a new dimension

The new modular workholding system for machining applications
of plates and large components.

Patent pending

The completely new product line Makro•Grip® Ultra offers various clamping possibilities and can be changed quickly and easily at the same time. Thanks to the expandability of its modules Makro•Grip® Ultra is capable of clamping parts of 810 mm length and beyond safely.

With its size it pushes the LANG workholding to new heights. Different system heights, individually expandable clamping ranges, interchangeable clamping jaw types and useful accessories – Through its wide range of possible configurations Makro•Grip® Ultra covers any imaginable clamping application.

Watch the Makro•Grip® Ultra video now

The workholding system at a glance

Modularity
Range of applications
Centric clamping of components up to 810 mm

Other advantages of Makro•Grip® Ultra

Changeover of clamping situation within seconds

Low-vibration and distortion-low clamping of thin and flat material

Clamping of asymmetrical parts due to individually adjustable clamping jaws

All-around machining without changing over the clamping system

Integration of automated machining processes possible without removing the clamping system

Simple cleaning and maintenance due to small number and easy removal of components

Convinced by the benefits of Makro•Grip® Ultra?
Then simply use the contact form to ask
for your individual quote.

Product overview

Ready for any clamping application

Modularity, flexibility and precision - Makro•Grip® Ultra
combines all these attributes in totally new dimensions.

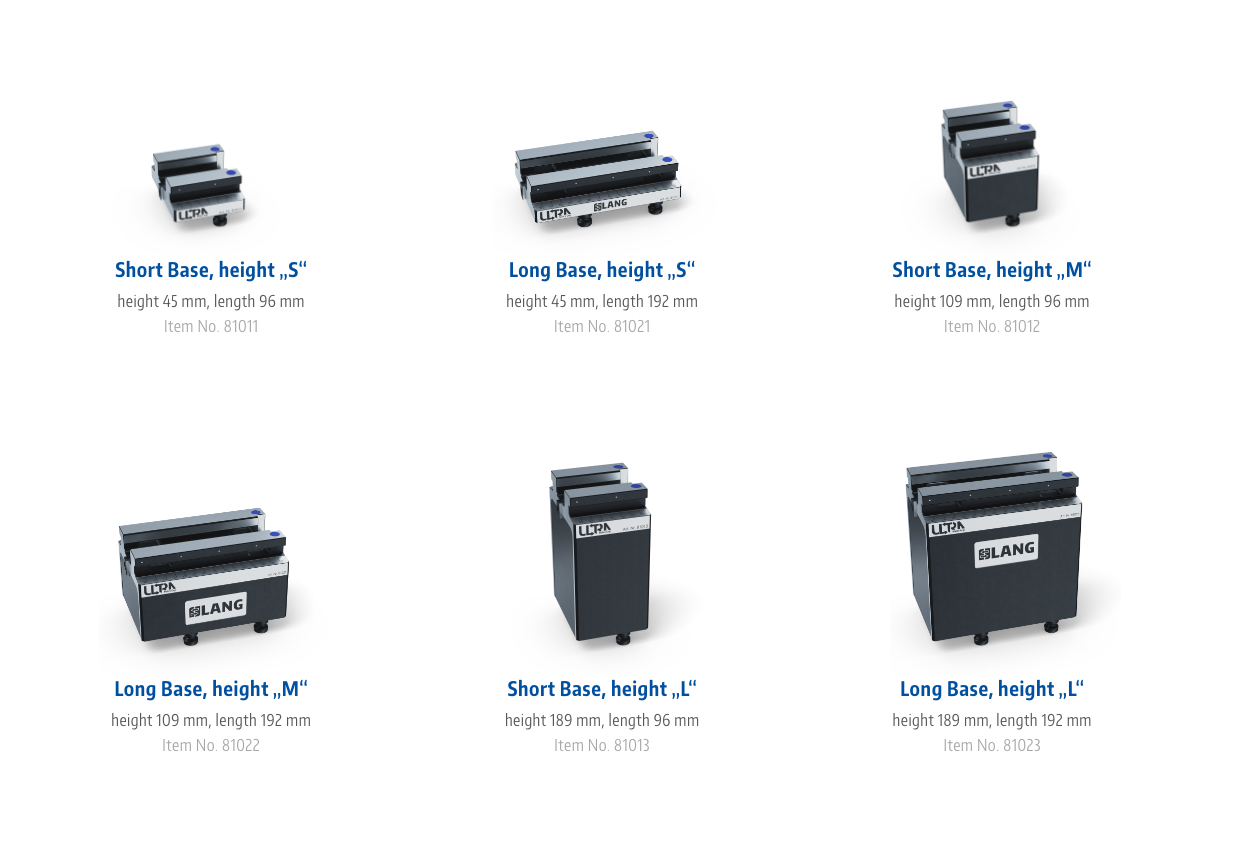

Modular design

The modularity and small number of components, as well as the consistent Quick•Point® 96 zero-point grid allow to change the clamping setup immediately.

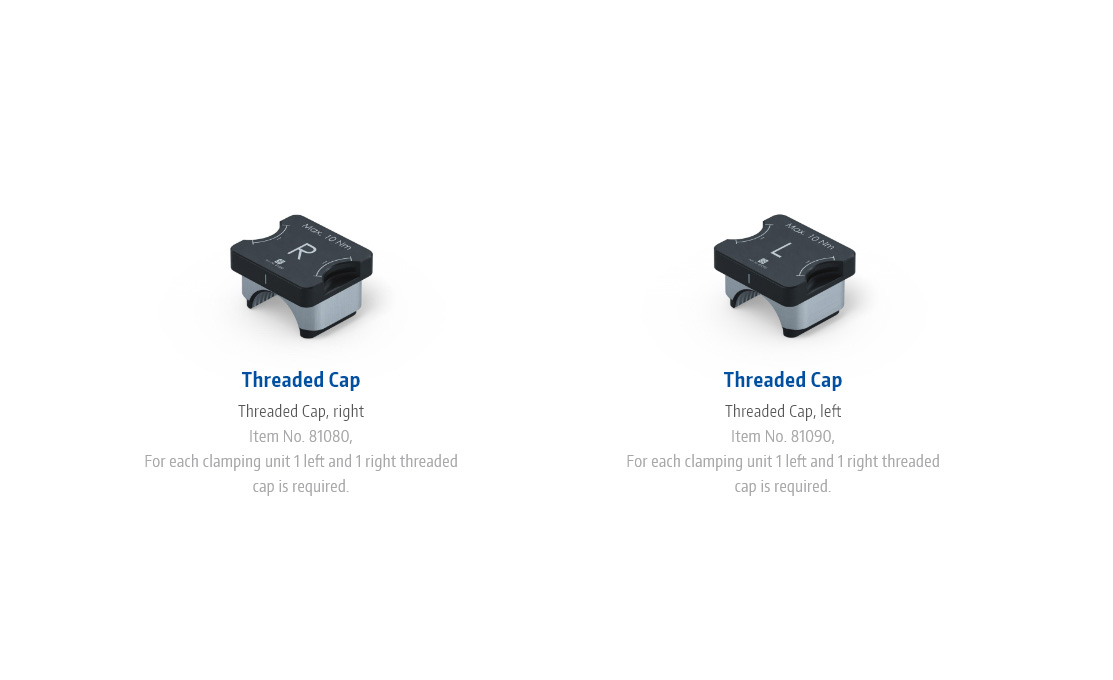

Innovative jaw adjustment

By removing the threaded cap with a magnetic handle the clamping jaw position can be changed in a short timescale without actuating the spindle, independently from other clamping jaws. By that, even asymmetrical parts can be clamped.

Easy to maintain

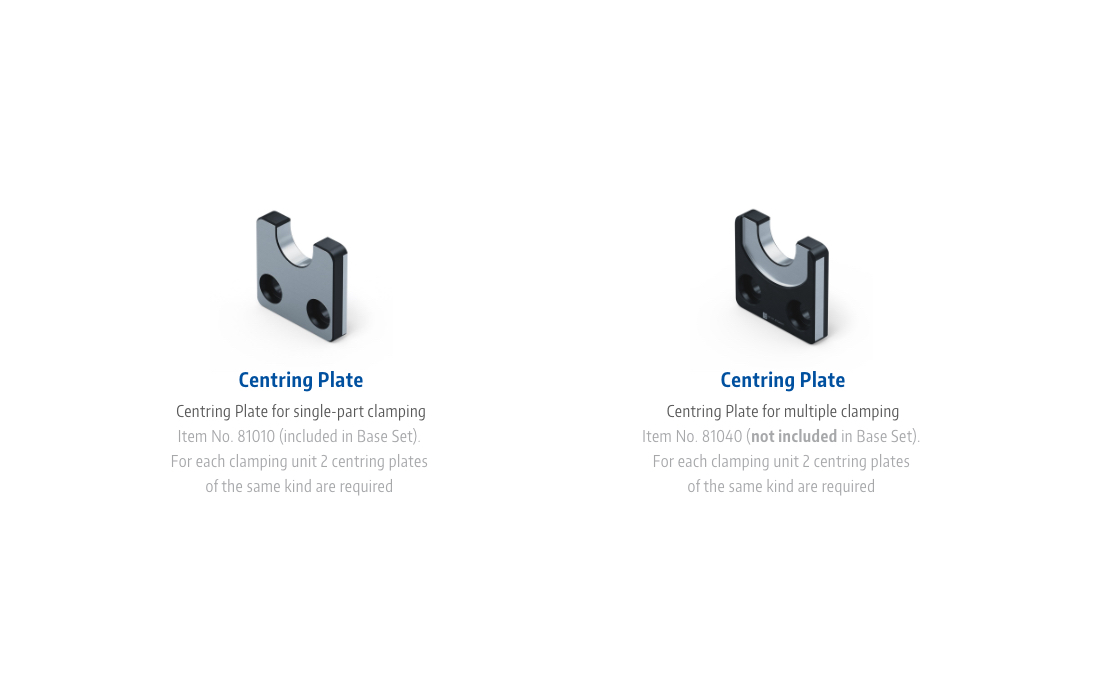

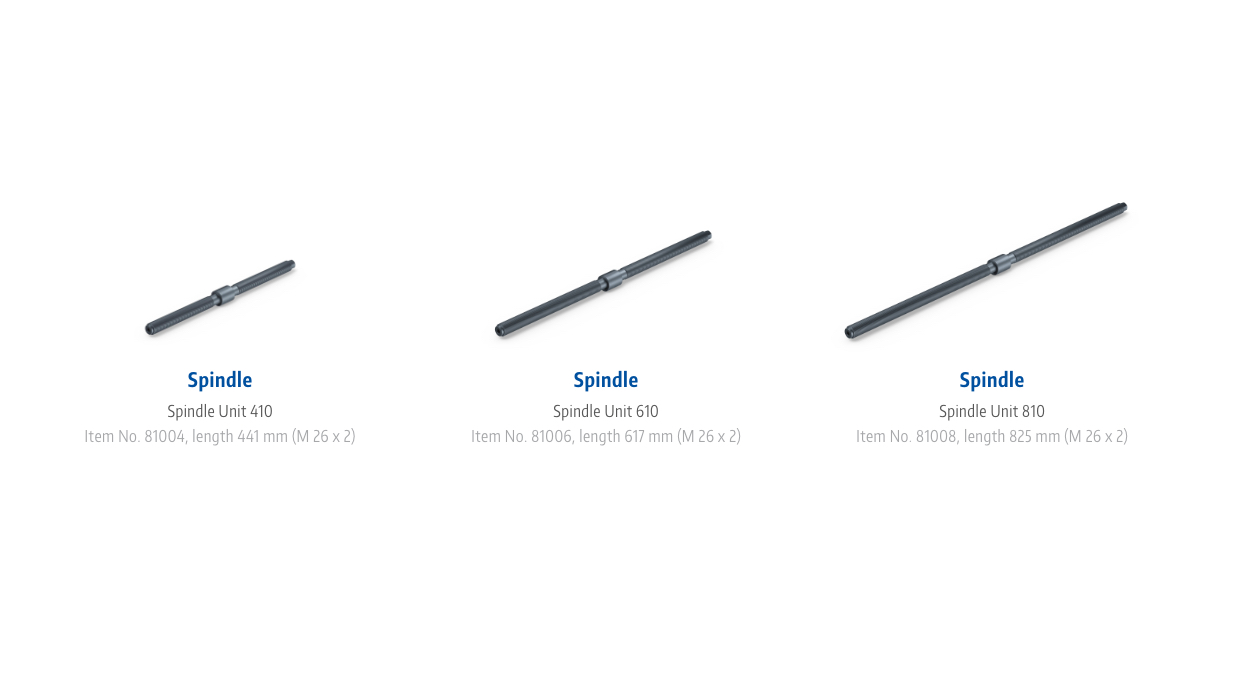

The Makro•Grip® Ultra spindle is solely fitted between two high-precision centering plates which allows for a quick and comfortable setup process. Clamping jaws and spindles are removed easily which simplifies cleaning and maintenance after and in between machining processes.

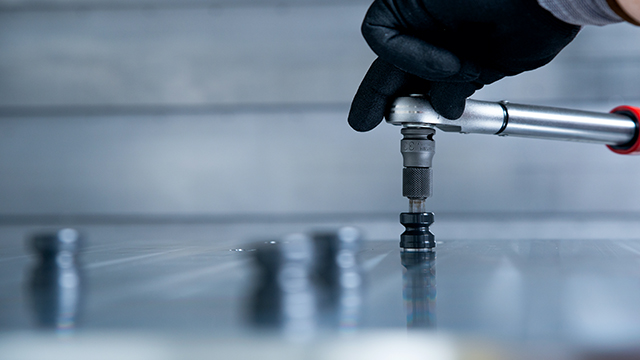

Quick to set up

The quick jaw adjustment which is made possible by threaded caps, allows quick changes between different jaw types.

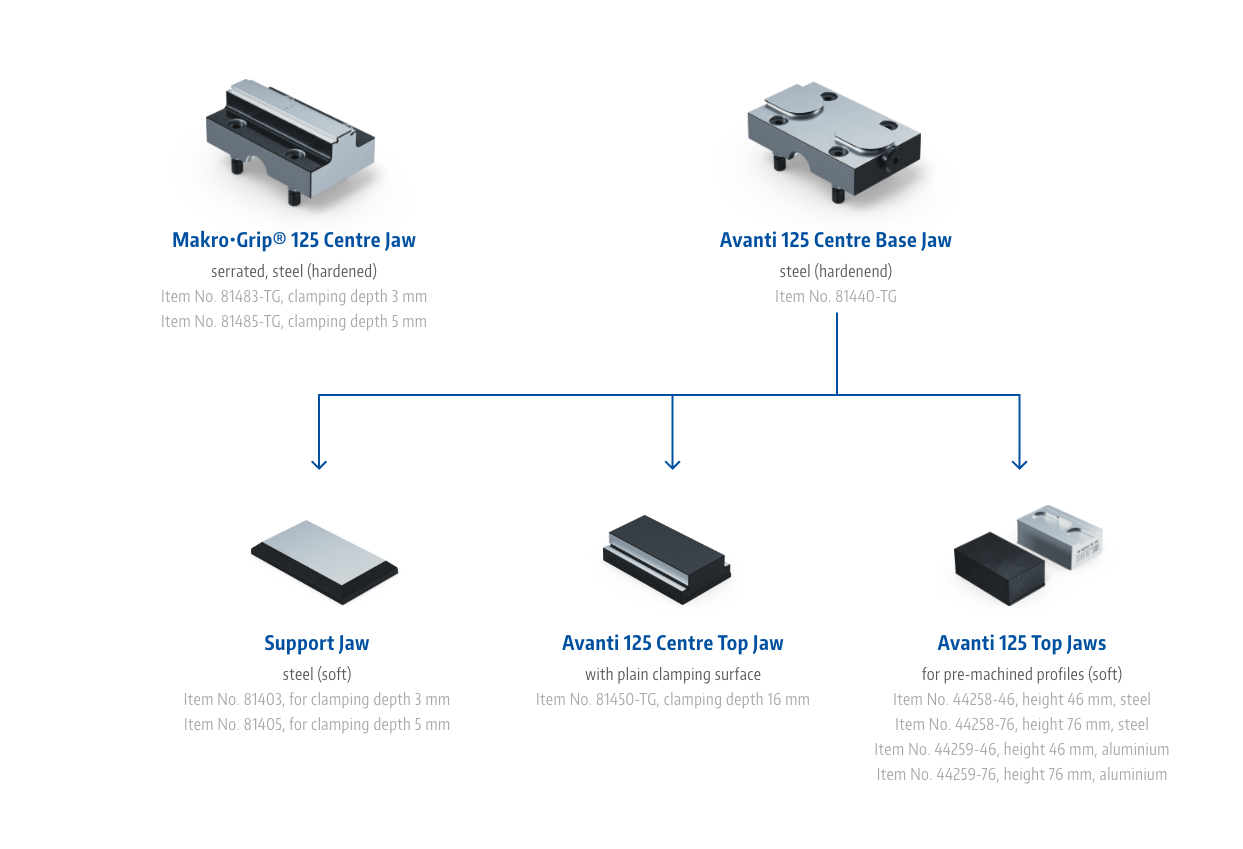

Various center options

In order to offer an additional resting surface and to limit possible vibrations, a support jaw can be mounted to the center of the clamping system. Center jaws are available for clamping multiple parts. In this case centering plates are used which makes it possible to clamp workpieces with a 4 mm variance in length.

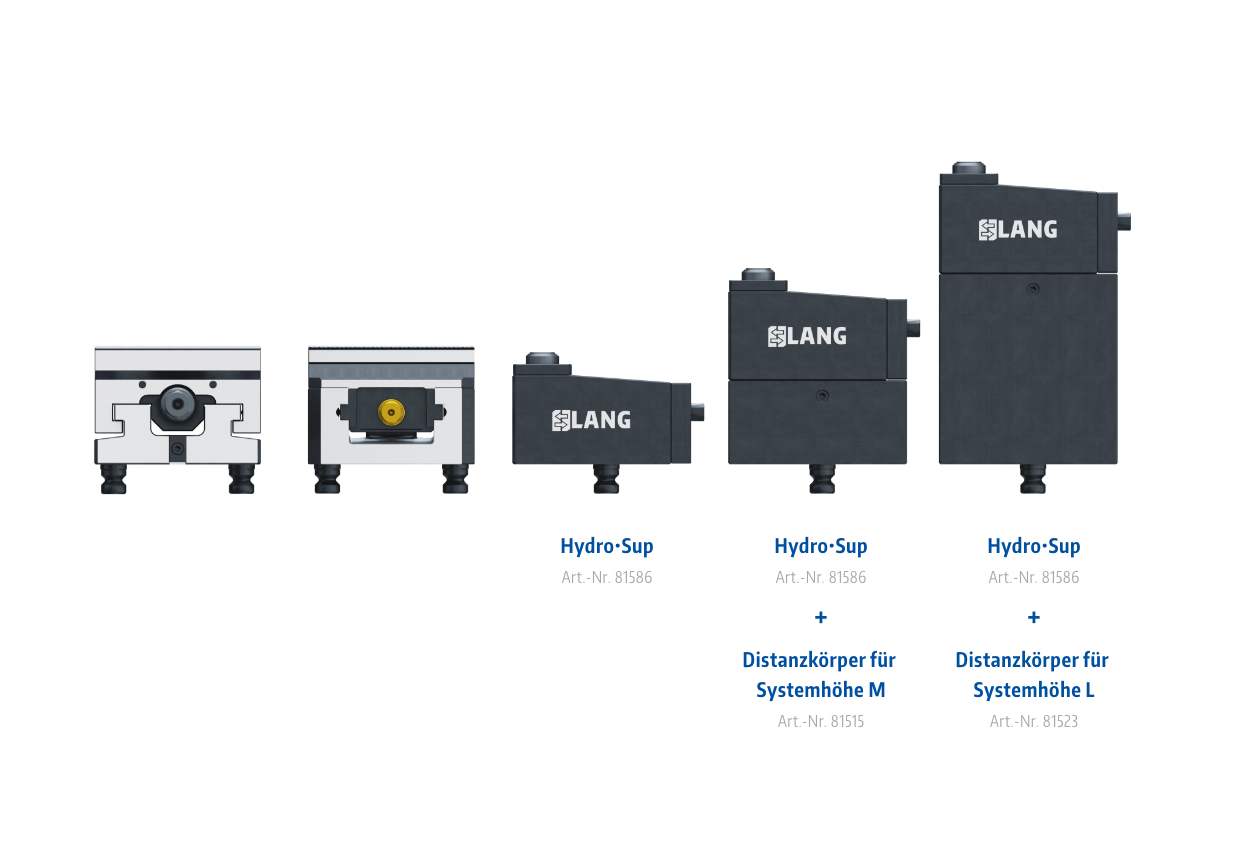

Low-vibration clamping

A specific hydraulic screw jack and spacers to match the respective height of the base bodies have a supporting effect on the clamping process which is particularly important with flat and wide material.

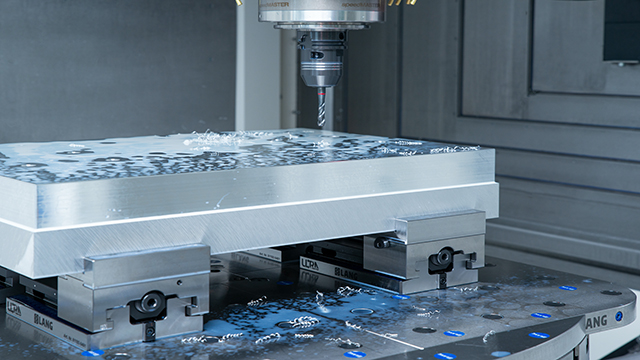

All-around machining

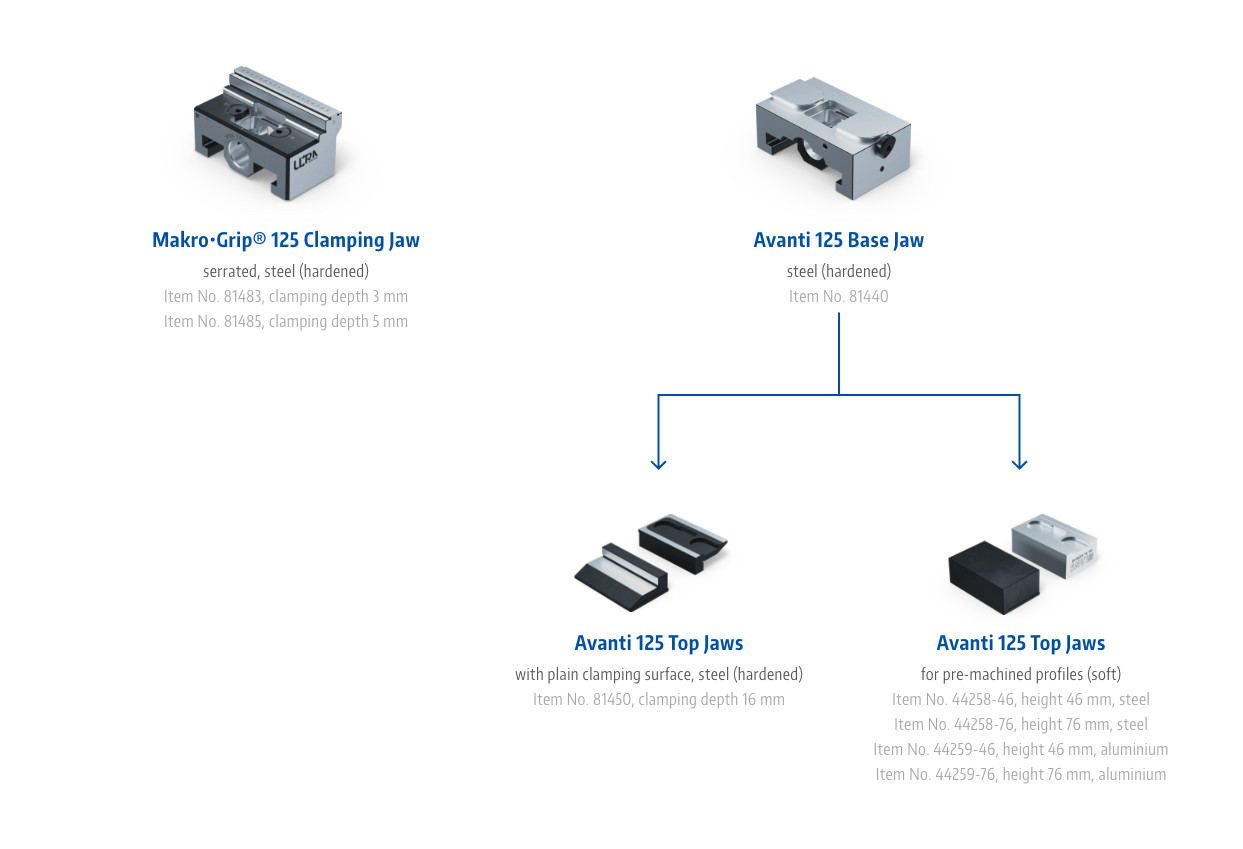

Thanks to the jaw variety the operator can choose between different approaches and configurations for the first and second operation depending on the requirements of the workpiece.

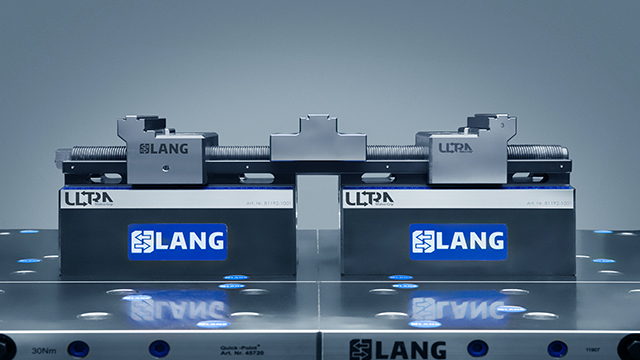

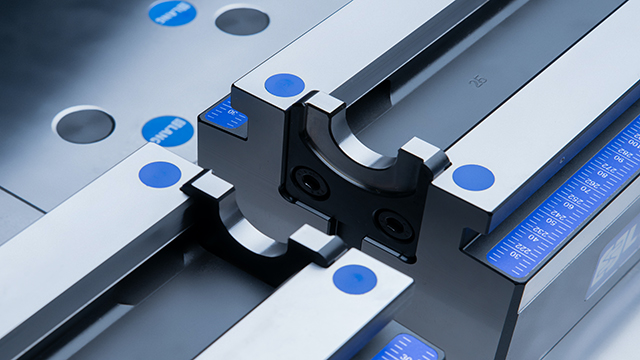

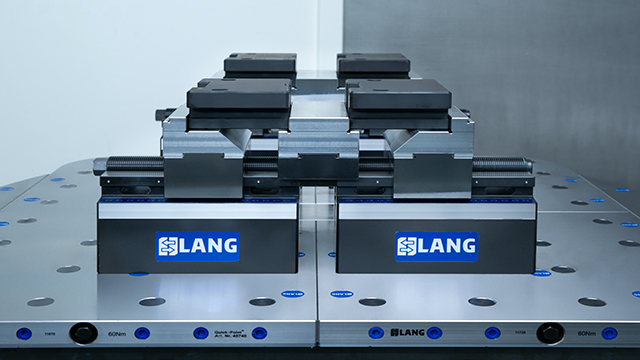

Multiple clamping

Center jaws can be mounted for clamping multiple parts simultaneously – both with serration or plain clamping surface.

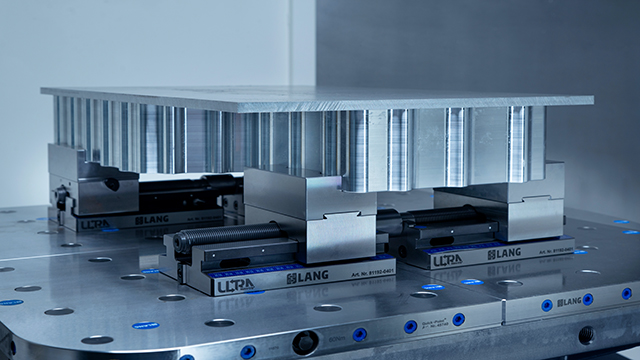

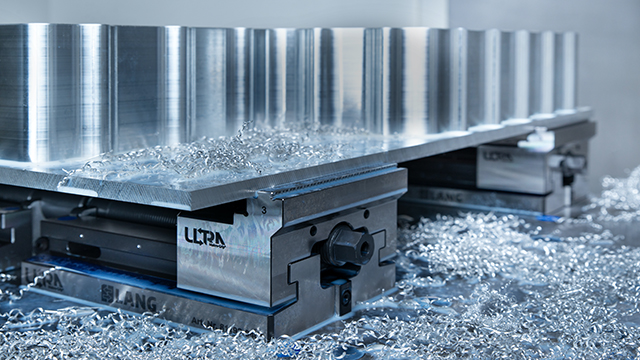

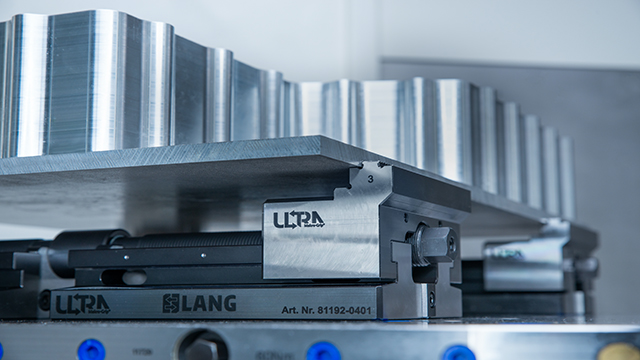

Asymmetrical parts

Each clamping jaw is individually secured by a threaded cap and thus can be moved indepentently from other clamping jaws. By that, asymmetrical and pre-machined profiles can be clamped.

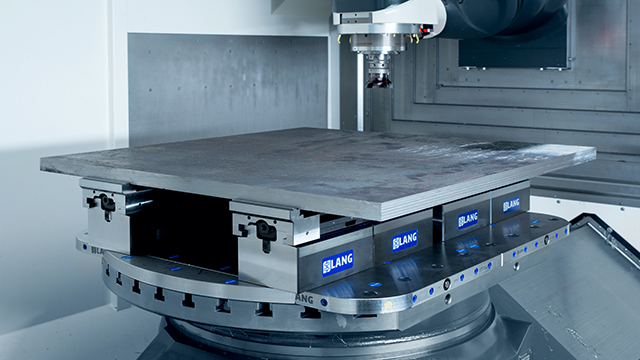

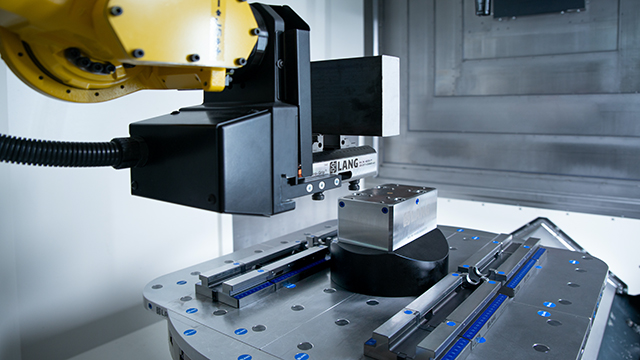

Manual and automated manufacturing

In a flexible, combined production (automated batch production of small parts by night, large parts manually during the day) an increased machine utilization can have a positive effect on unit costs.
Modularity

Individuell kombinierbar

Erleben Sie, wie schnell und vielfältig sich Makro•Grip® Ultra kombinieren lässt.

Clamping of large parts
Clamping of asymmetrical parts
Clamping of multiple parts
Clamping of round parts
Clamping of plates and flat parts

Your connection is too slow to show the interactive 3D model. You are seeing the mobile version.

Clamping of large parts

Click and drag
This clamping situation consists of:
  • 2x Base Set 410 L for a clamping range up to 410 mm
  • Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm

Clamping of asymmetrical parts

Click and drag
This clamping situation consists of:
  • 2x Base Set 610 M for a clamping range up to 610 mm
  • Avanti 125 base jaws and top jaws with plain clamping surface
  • Unequal jaw positioning
  • Avanti center base jaw with support jaw

Clamping of multiple parts

Click and drag
This clamping situation consists of:
  • 2x Base Set 610 M for a clamping range up to 610 mm
  • Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm
  • Serrated Makro•Grip® Ultra 125 center jaws for clamping multiple parts

Clamping of round parts

Click and drag
This clamping situation consists of:
  • 1x Base Set 410 S for a clamping range up to 410 mm
  • Base jaws with Avanti 125 top jaws
  • 2x Hydro•Sup screw jack

Clamping of plates and flat parts

Click and drag
This clamping situation consists of:
  • 2x Base Set 810 M for a clamping range up to 810 mm
  • Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm
Modularity

Experience with one click, how easily and quick clamping applications can be changed with Makro•Grip® Ultra.

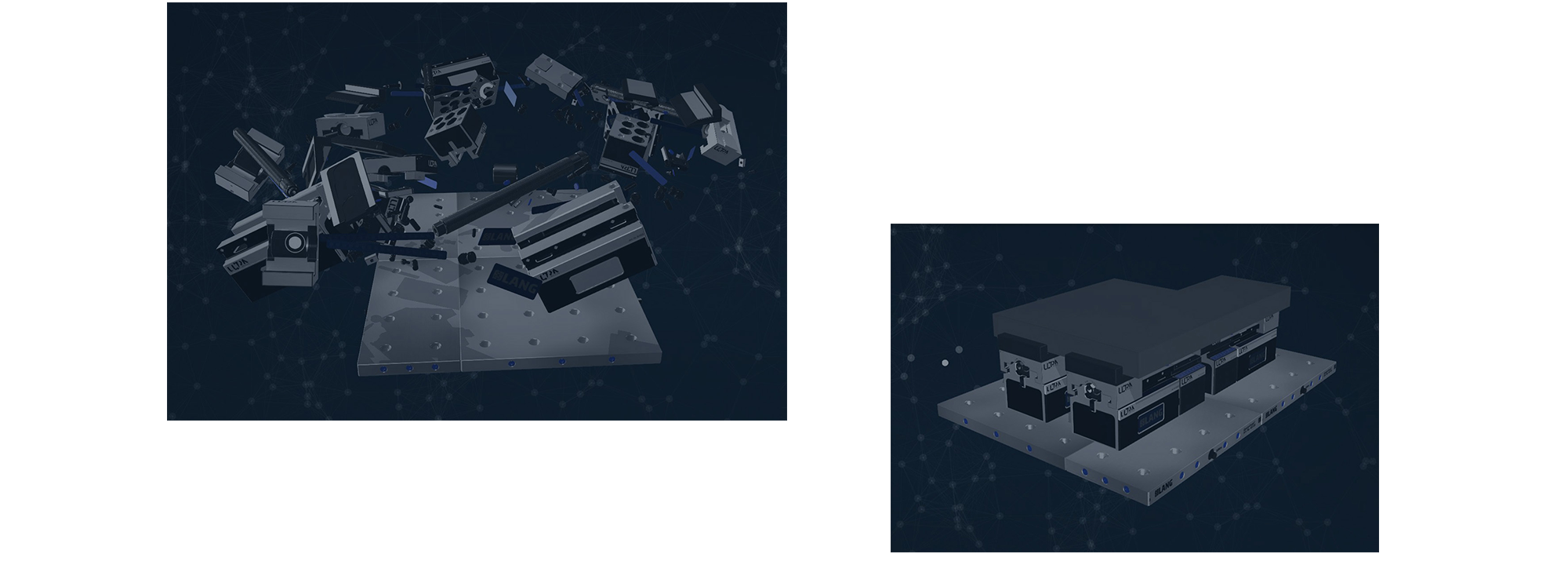

Interactive 3D model of the Makro•Grip® Ultra clamping system

Rotate 3D model by moving pressed mouse button

Click and hold pulsing buttons to show different applications

Just one moment please. The 3D model of the Makro•Grip® Ultra is loading ...

Part: 400 x 400 x 250 mm

Selected configuration:

  • 2x Base Set 410 L for a clamping range up to 410 mm
  • Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm

Part: 600 x 400 mm (asymmetrical)

Selected configuration:

  • 2x Base Set 610 M for a clamping range up to 610 mm
  • Avanti 125 base jaws and top jaws with plain clamping surface
  • Unequal jaw positioning
  • Avanti center base jaw with support jaw

4 Parts: 180 x 130 x 100 mm

Selected configuration:

  • 2x Base Set 610 M for a clamping range up to 610 mm
  • Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm
  • Serrated Makro•Grip® Ultra 125 center jaws for clamping multiple parts

Part: Ø 400 mm

Selected configuration:

  • 1x Base Set 410 S for a clamping range up to 410 mm
  • Base jaws with Avanti 125 top jaws
  • 2x Hydro•Sup screw jack

Part: 800 x 600 mm

Selected configuration:

  • 2x Base Set 810 M for a clamping range up to 810 mm
  • Serrated Makro•Grip® Ultra 125 clamping jaws, clamping depth 3 mm
Click and drag

Diverse configurations

Base Sets

Base Set 410 S
Base Set 410 M
Base Set 410 L

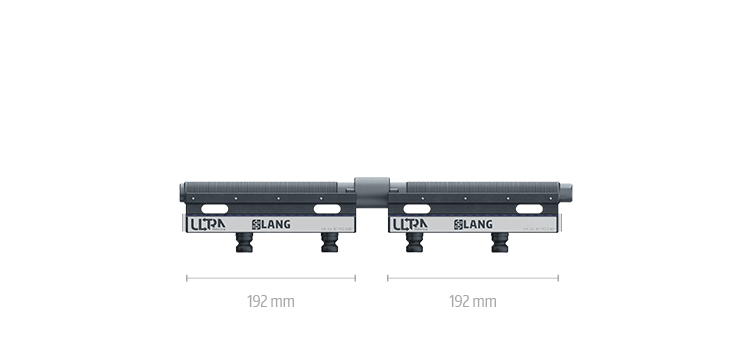

Base Set 410 S

Clamping range up to 410 mm

Item No.
81400
Spindle length
441 mm
Base height
45 mm
Clamping range
40-410 mm
Required zero-point units
2 units

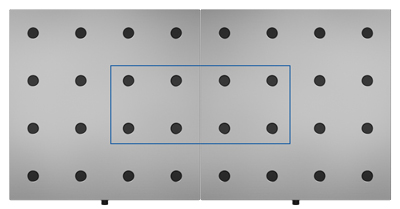

2 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
12,8 kg
Downloads

Base Set 410 M

Clamping range up to 410 mm

Item No.
81415
Spindle length
441 mm
Base height
109 mm
Clamping range
40-410 mm
Required zero-point units
2 units

2 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
26,0 kg
Downloads

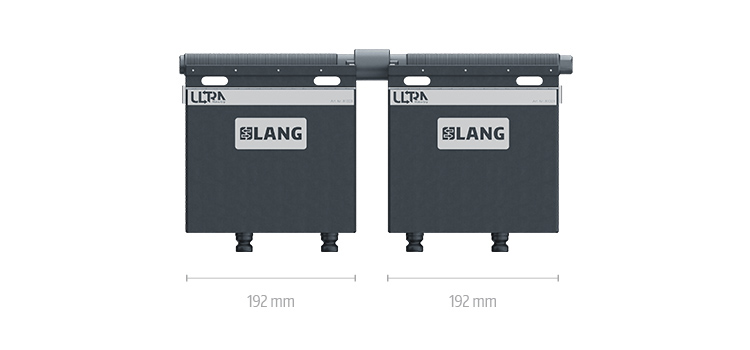

Base Set 410 L

Clamping range up to 410 mm

Item No.
81423
Spindle length
441 mm
Base height
189 mm
Clamping range
40-410 mm
Required zero-point units
2 units

2 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
43,2 kg
Downloads
Base Set 610 S
Base Set 610 M
Base Set 610 L

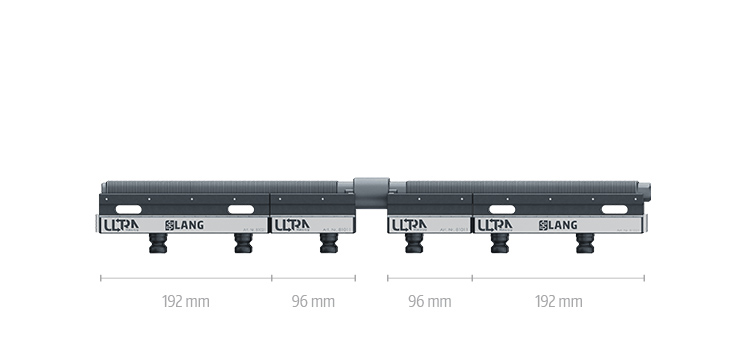

Base Set 610 S

Clamping range up to 610 mm

Item No.
81600
Spindle length
617 mm
Base height
45 mm
Clamping range
40-610 mm
Required zero-point units
3 units

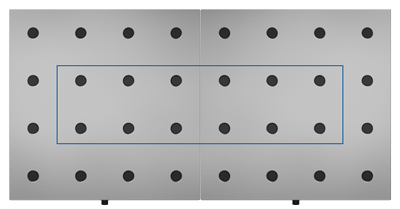

3 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
19,1 kg
Downloads

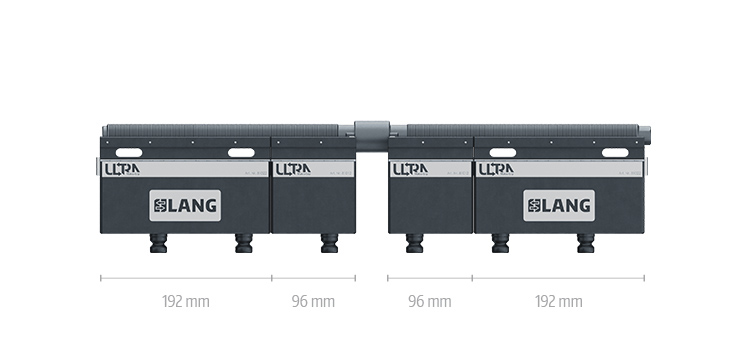

Base Set 610 M

Clamping range up to 610 mm

Item No.
81615
Spindle length
617 mm
Base height
109 mm
Clamping range
40-610 mm
Required zero-point units
3 units

3 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
40,1 kg
Downloads

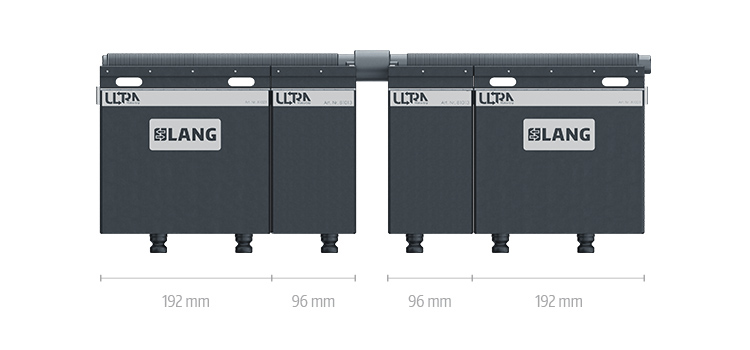

Base Set 610 L

Clamping range up to 610 mm

Item No.
81623
Spindle length
617 mm
Base height
189 mm
Clamping range
40-610 mm
Required zero-point units
3 units

3 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
66,9 kg
Downloads
Base Set 810 S
Base Set 810 M
Base Set 810 L

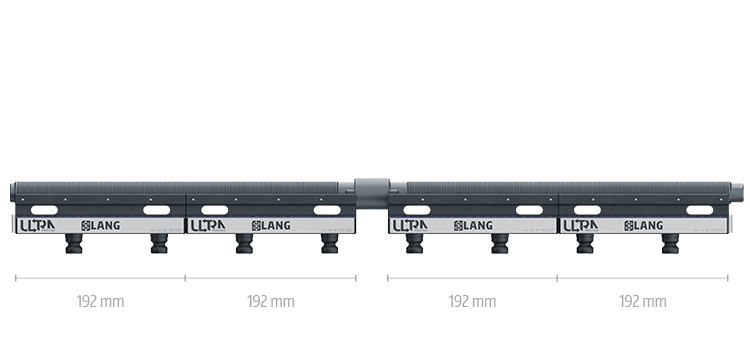

Base Set 810 S

Clamping range up to 810 mm

Item No.
81800
Spindle length
825 mm
Base height
45 mm
Clamping range
40-810 mm
Required zero-point units
4 units

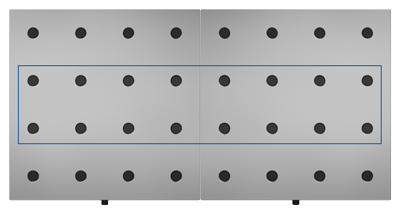

4 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
25,3 kg
Downloads

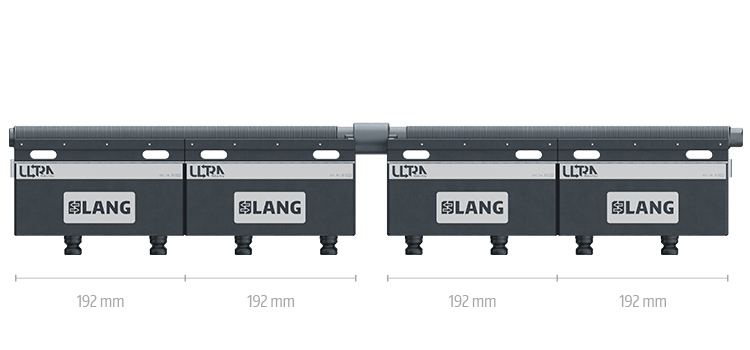

Base Set 810 M

Clamping range up to 810 mm

Item No.
81815
Spindle length
825 mm
Base height
109 mm
Clamping range
40-810 mm
Required zero-point units
4 units

4 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
51,7 kg
Downloads

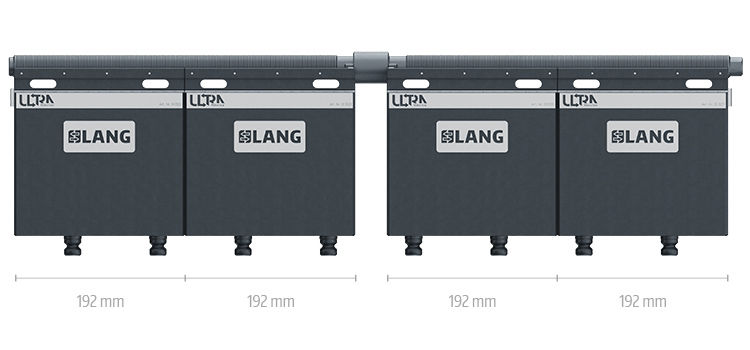

Base Set 810 L

Clamping range up to 810 mm

Item No.
81823
Spindle length
825 mm
Base height
189 mm
Clamping range
40-810 mm
Required zero-point units
4 units

4 Quick•Point® zero-point units This graphic shows an exemplary plate configuration. Other zero-point plate types are also possible.

Weight
85,7 kg
Downloads

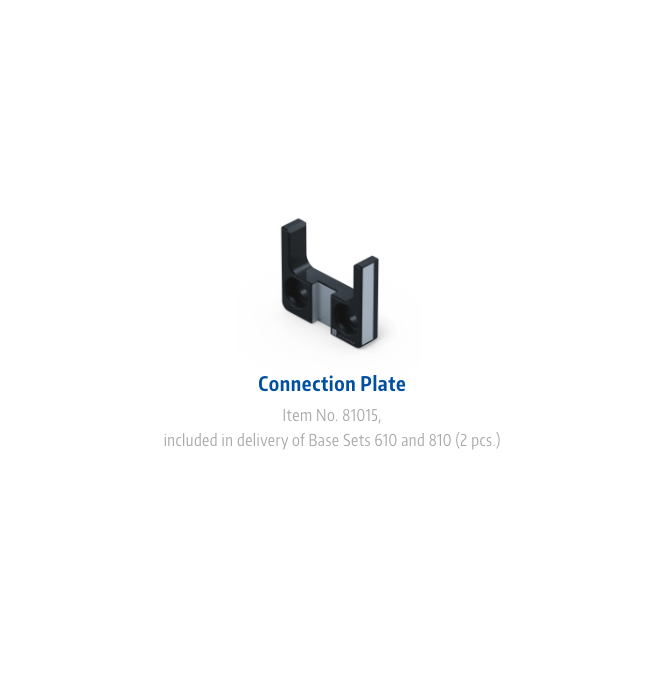

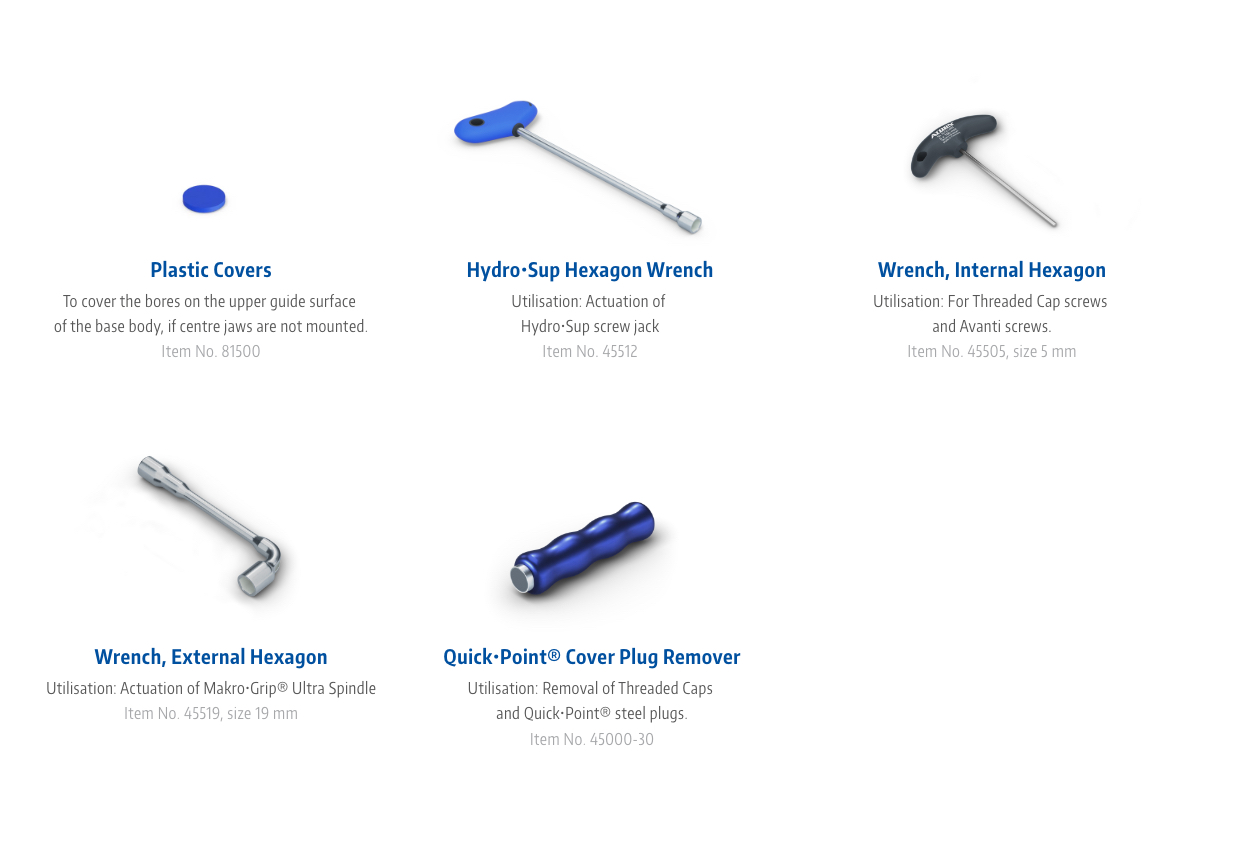

Base Set includes: Bases with Quick•Point clamping studs, spindle, 2 centering plates, 2 connecting plates (only with Base Sets 610 and 810), Wrenches size 5 and size 19, Quick•Point cover plug remover

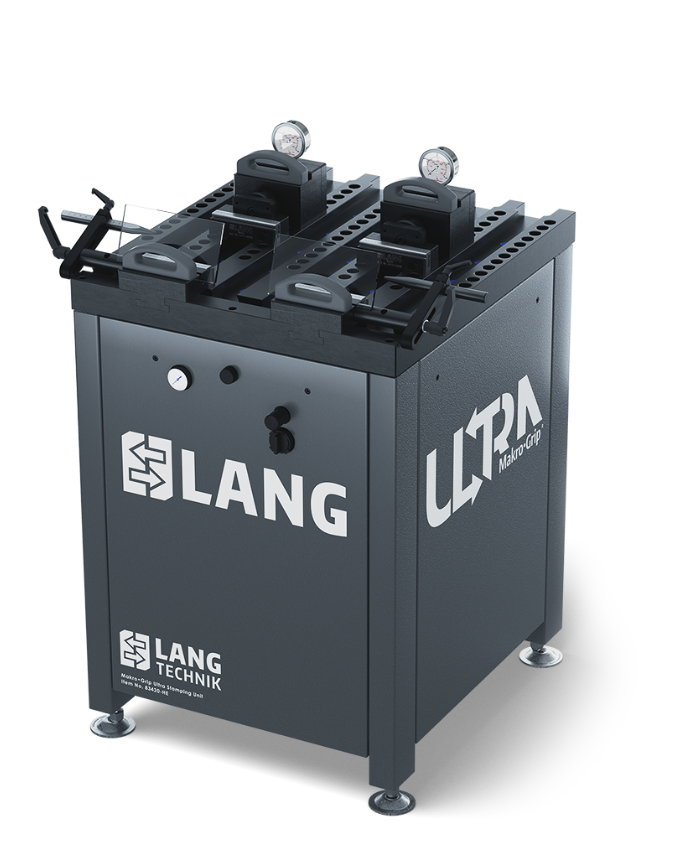

Makro•Grip® Ultra Stamping Unit

The stamping technology is now available for large parts. The form-closure effect which is made possible by pre-stamping guarantees highest holding forces at low tightening torque. The Makro•Grip® Ultra stamping unit is designed as a dual stamping unit with two stamping vises. These can be flexibly positioned on the grooved plate of the stamping unit in order to precisely reproduce the subsequent clamping situation in the 96 mm grid of the zero point clamping system.

To product page

Further information about the Makro•Grip® Ultra stamping unit:

The stamping technology

Form-Closure Technology refers to a technology in which the workpiece to be clamped is “pre-stamped” with a defined contour under high stamping pressure (up to 20 t) outside of the machine tool, before it is clamped in the clamping device. Due to the great amount of advantages for the actual clamping process through “pre-stamping”, the Makro•Grip® technology is considered a benchmark in the 5-sided machining of blanks and absolutely beneficial to automated manufacturing.

More information
Why pre-stamp a workpiece?

The form-closure effect between the gripping serration of the clamping jaws and stamping indentation guarantees highest holding forces and maximum process reliability at a very low clamping pressure. This practically eliminates any material deformation which is crucial to clamping flat and deformation-sensitive material and a key factor in achieving the desired milling quality. The stamping technology completes the Makro•Grip® Ultra system and raises the quality of plate and large part clamping to a new level.

Makro•Grip® Ultra

Write your own success story with Makro•Grip® Ultra

Product overview

Success Stories

Clamping with Makro•Grip® Ultra pays off according to our customers

Makro•Grip® Ultra offers us the opportunity to clamp components, for which we had no solution so far. I was especially impressed by how fast we were able to solve an existing clamping tasks. From getting to know the system to the first chip in our production it did not even take 3 hours.

Simon Großmann, Großmann Präzisionstechnik, 73235 Weilheim unter Teck, Germany

With the new system by LANG we are now able to clamp large workpieces concentrically. The modularity of Makro•Grip® Ultra combined with the zero-point clamping system made it possible to process various parts in no time. The quick jaw adjustment is designed to be very user-friendly. Also the stamping technology was put to test successfully once again. In this application we clamped a steel block with a height of 350 mm at a clamping depth of only 5 mm. Roughing was done using a high feed milling cutter. With Avanti top jaws the second operation is realized in a few simple steps. In terms of accuracy the LANG system leaves nothing to be desired.

Michael Kupke, MKTec Meisterbetrieb, 86567 Hilgertshausen, Germany

Due to the high level of vertical integration of small batch sizes, set-up times have a significant impact on the economic efficiency in our prototype department. At the same time, the frequent change between different clamping situations demands a lot of flexibility of our workholding. This is exactly where the advantages of the zero-point clamping system and the very modular Makro•Grip® Ultra become apparent for us. Thanks to its modularity, we can always adapt the system exactly to our requirements and cover the majority of parts with basically the same workholding system. We therefore have our setup times under control at all times.

Uwe Herrmann, Bertrandt Technikum GmbH, 71139 Ehningen, Germany
